Waterproof IP65 LED Outdoor Landscape Lighting 140LM/W Thermal Management

Ask Lasest Price
Brand Name :	DALITE
Model Number :	LTYL-909F
Certification :	CE,UL
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	40000sets/month
Delivery Time :	2-6 weeks

Add to Cart

Product Details
Company Profile

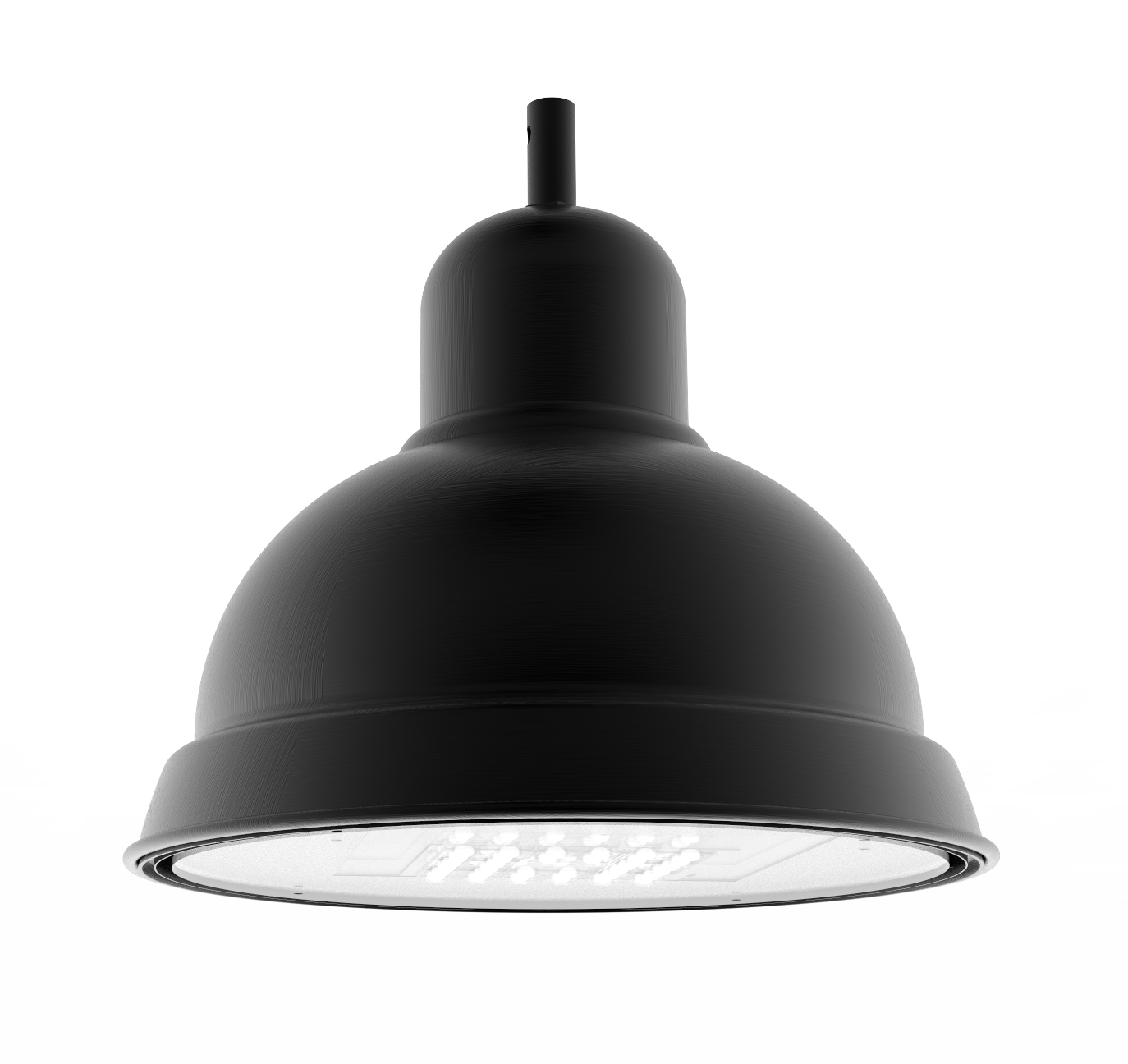

Waterproof IP65 LED Outdoor Landscape Lighting 140LM/W Thermal Management

140LM/W Luminious Efficiency Excellent Thermal Management IP65 Waterproof Long Lifetime Outdoor Led Landscape Lights
Model: LTYL-909F

European and American design style.Adopt aerodynamic design, take heat away quickly, keep low temperature for heat sink and LED chip for long lifespan and high light efficiency.

Key advantages

• Patent number:ZL 2018 3 0024938.3

• Clean, smooth design blending harmoniously into outdoor environments.

• Heavy-duty die-cast aluminum housing.

• UV stabilized polyester powder coating finish for durability and

corrosion resistance.

• Precision engineered individual lenses made of optical grade polycarbonate

for maximum light intensity, with tempered glass cover to protert the optics.

• Excellent thermal management

• IP65 protection degree

• Luminious efficiency up to 140LM/W.

Characteristics

Code	LTYL-909F
Size(DWHmm)	600600564
Rated Power	30W/60W/100W/150W
Beam Angle(Fixed lens)	90°*90°/T2-S/T3-M/T4
Efficiency @2835	140LM/W
Luminous Flux	4200/8400/14000/21000LM
CCT	3000-6500K
CRI	Ra>70
Input Voltages	120-277V
Frequency	50-60Hz
Power Factor	>0.95
Protection Index	IP65
Impact Resistance	IK08
Working Temperature	-40-50℃
Working Humidity	10%-95%
Electrical Class	Class I
Finishing	Standard color(RAL 7035,7042,9006,9007) other colors upon request
Service Life	>50000H

Dimensions

Photometric Distributions

Details Picture

Installation Diagram

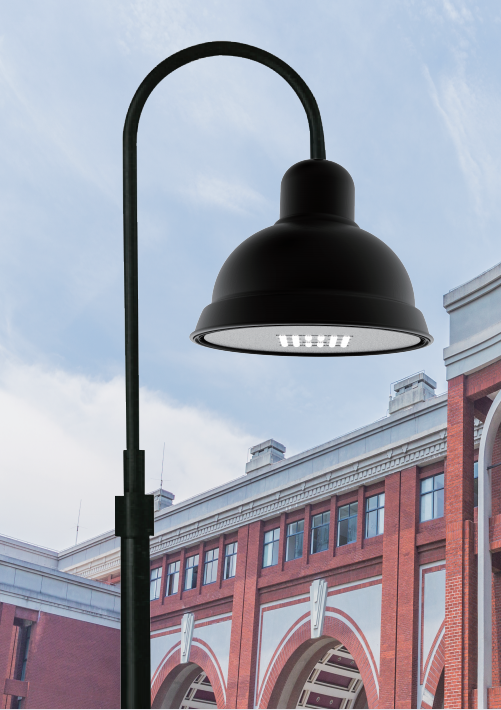

Application example
