SASO Outdoor 15000LM 100W LED Street Light Waterproof

Ask Lasest Price
Brand Name :	DALITE
Model Number :	LLDL-904
Certification :	CE,CB,ENEC,KK,KEMA,UL,SASO
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	40000sets/month
Delivery Time :	2-6 weeks

Add to Cart

Product Details
Company Profile

SASO Outdoor 15000LM 100W LED Street Light Waterproof

Certifications of ENEC&KK&KEMA&SASO, Waterproof IP66, Anti-Impact IK09, LLDL-904, LED Roadway Lights

Code: LLDL-904

Structure And Materials

Structural components: Body, cover and spigot. connection made of EN1706 43000 die cast aluminium,self-cleaning system.
Stainless steel screws AISI 304.
Integrally cast hinge mechanism between dome and ring ensuring robustness.
Free tooling latch lock system made in die casting aluminium.

Smart Lighting

The Star luminaires can integrate the smart control solutions to operate either in stand-alone mode, in an autonomous network or an interoperable network.Dimming scenarios and light-on-demand features including sensors can adapt the lighting to the real needs of the place and the time to ensure safety and well-being in the most sustainable way.

Performance and flexibility

The Star luminaires are equipped with photometric engines composed of modular quantities of LEDs so that they can offer a wide range of lumen packages. They can also be equipped with a variety of drivers and dimming options.
The Star luminaires can be adjusted on-site for optimal photometric performance.
This flexibility ensures that the light distributions are specifically adapted to the real needs of the area to be light.

Maximum Energy Savings

A minimal total cost of ownership was the driving force behind the development of the Star range. It is equipped with LEDs and various dimming and remote management options for a dramatic reduction in energy consumption.
It offers a very competitive alternative to luminaires equipped with traditional light sources such as high-pressure sodium lamps.

Key advantages

Patent number:ZL 2018 3 0024955.X
Luminous efficacy > 150 Im/W Max
IP66 protection degree
Cover different requirements from 35W to 300W
Tool-less entry for easy installation and maintenance
Optinal 7-Pin Nema socket on option
Full series certification:CE,CB,ENEC,KK,KEMA,UL,SASO

Characteristics

Code	LLDL-904A	LLDL-904M	LLDL-904B	LLDL-904C
Size	600230110	656265106	740306115	915418145
Rated Power	35/55/75W	100/120W	150/180W	210/240/300W
Beam Angle	T2-S/T2-M/T2-MA/T2/T3-M/T3/T4/T5
Efficiency@3030	140LM/W
Efficiency@5050	150LM/W
Efficiency@3535	130LM/W
Luminous Flux@3030	4900/7700/10500	14000/16800	21000/25200	29400/33600/42000
Luminous Flux@5050	5250/8250/11250	15000/18000	22500/27000	31500/36000/45000
Luminous Flux@3535	4550/7150/9750	13000/15600	19500/23400	27300/31200/39000
CCT	3000K-6500K
CRI	Ra>70
Input Voltages	120-277V
Frequency	50/60Hz
Power Factor	>0.95
Protection Index	IP66
Impact Resistance	IK08
Working Temperature	-40-50℃
Working Humidity	10%-95%
Electrical Class	Class I / II
Finishing	Standard color(RAL 7035,7042,9006,9007) other colors upon request
Service Life	>50000H

Dimensions

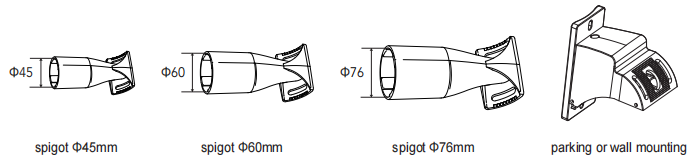

Slip Fitter On Option

Photometric Distributions

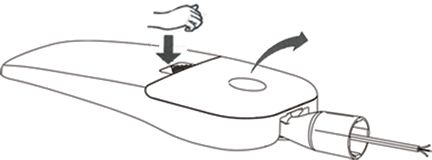

Installation Diagram

1 . Injection die-cast aluminium, aluminium cover

2 . Body and Dome in High Pressure Die-casting Aluminum, any RAL colour available

3 . Electrical Safety Switch

4 . Output SPD(10KV) Optional

5 . Philips Input SPD(10KV)

6 . Spirit level function system to ensure lighting horiontal level, reduce lighting pollution

7 . Button opening and closing system ,Free tooling

8 . More firmly metal connector for cover and body

9 . 5mm thickness ultra-thin glass

10 . Silicon Gasket , IP66

11 . Metal Latch system ,Free Tooling

12 . 1 Air breathing system for better

12 . 2 heat dissipation

Dio poles and brackets

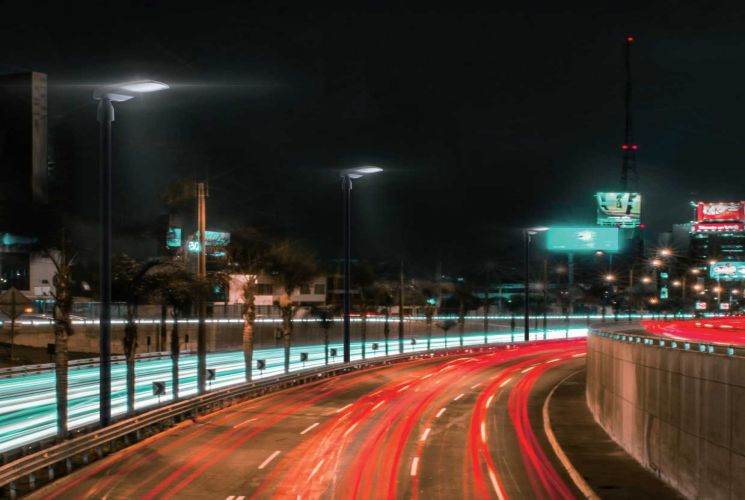

Application Example
