240w AC Line Led Street Light Die Cast Aluminum Ip65 Waterproof IK08

Ask Lasest Price
Brand Name :	DALITE
Model Number :	LLDL-903
Certification :	CE,CB
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	40000sets/month
Delivery Time :	2-6 weeks

Add to Cart

Product Details
Company Profile

240w AC Line Led Street Light Die Cast Aluminum Ip65 Waterproof IK08

Die-cast aluminum 50-240w Ip65 Waterproof Led Street Light IK08

Code: LLDL-903

A Spec.

LED Street light series is a flexible yet powerful,easy to maintain LED street light lantern. It is a high performance,extremely high efficacy platform that offers different dimming control options. The luminaire is specially designed for ME1-5 type road applications,which ensures excellent visibility for drivers and good comfort for pedestrians.

Specifications

Input Voltage:	100 ~ 277Vac
Input Frequency:	50 / 60Hz
Power Factor (PF):	0.95
Surge Protection Level:	10kV line-earth
Operating Environment:	-40 ~ +50 , 10% ~ 90% RH
Color Temperature (CCT):	3000K, 4000K, 5000K, 5700K
Color Rendering Index (CRI):	70
Housing:	Die-cast Aluminum
IP Rating:	IP65
Impact Protection Level:	IK08
Adjustable tilt angle side:	-15°/ -10°/-5°/ 0°/ 5°/ 10°/ 15°
Finish:	RAL9006
Warranty:	5 Years Limited

Technical Data

Optical Specifications

Luminous Flux	50W	60W	75W	100W	120W	150W	180W	200W	240W
	6750	8100	10125	13500	16200	20250	24300	27000	32400
	7000	8400	10500	14000	16800	21000	25200	28000	33600
Efficacy	135lm/ W@3000K
Efficacy	140lm/ W@4000K/ 5000K/ 5700K
CCT	3000K,4000K,5000K,5700K
CRI(Ra)	＞70
SDCM	＜7
Beam Angle	T2S/T3M

Electrical and Mechanical Specifications

Input Voltage	100-240V/ 277V AC 50/60Hz
Power Consumption	50W-60W-70W	100W-120W-150W	180W-2000W-240W
Power Factor	＞0.9
Total Harmonic Distortion	15%
ESD Protection	Contact 4KV, Air 8KV
Surge Protection	10KV,20KV
Cover Lens	PC lens
Housing	Die-casting aluminium,RAL9006(RAL or AKZO colours available on request.)

System Specifications

Power	AC line
Dimmable	ON/OFF,time dimming,1-10V dimming and *PWM dimming
	(Time dimming,1-10V dimming and PWM dimming can be customized)
Mounting Type	Side-entry mounting
Installation Height	8-15m
Mounting Diameter	55mm-60mm
Operating Temperature	-30℃ to +40℃
Relative Humidity	0 to 93%
Storage Temperature	-30℃ to +85℃
Environment	Outdoor (IP65)
Lumen Maintenance	L70@25℃- 50,000hrs
Safety Approval	Electrical Protection Class I,RoHS

Items with * are non-standard items and are available on request.

Applications

Roadway lighting

(Urban roads, residential areas, overpasses…)

Public areas lighting

(Theme parks, squares, parking lots…)

Dimensions

Dimensions	LLDL-903A	LLDL-903B	LLDL-903C
L (mm)	481	594	640
W (mm)	260	263	315
H (mm)	137	135	143
Weight (KG)	3.85	5.55	7.1

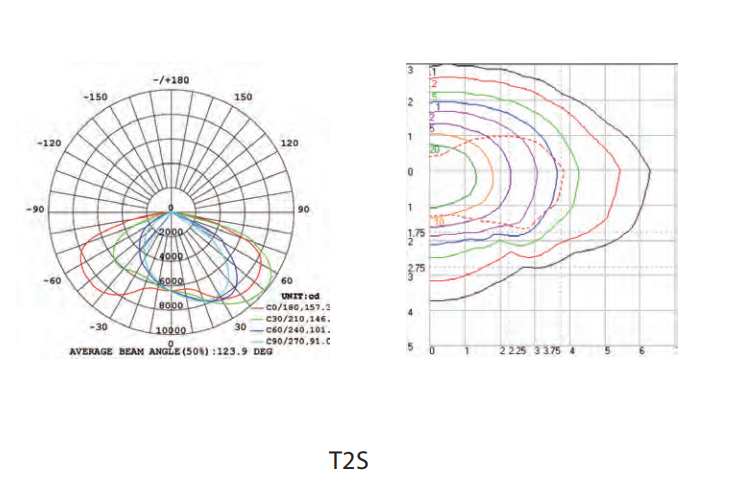

Photometrics

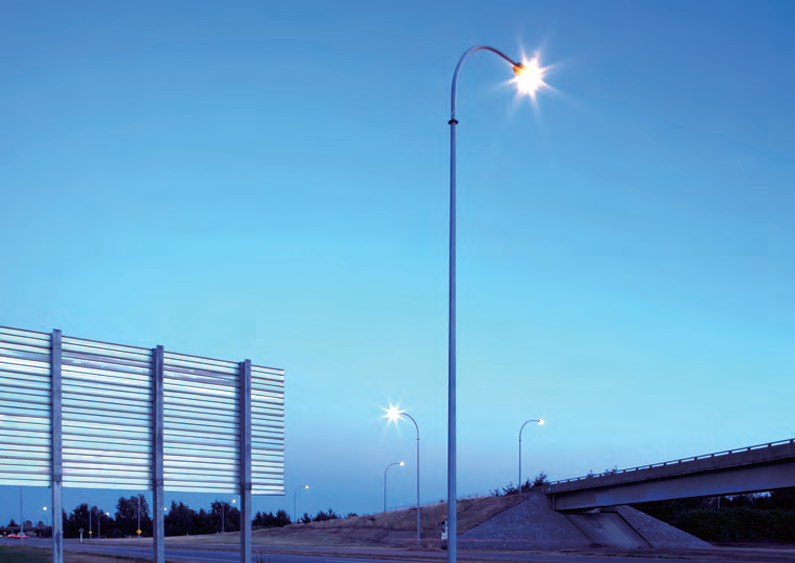

Application Example
